Short Range Bench Rest Bullets

These short range bench rest bullets (and many more) are available directly from my bullet swaging mentor, along with an assorted range of bullet swaging consumables, tooling and presses. See contact details and a sample list with pricing below.

Short Range Bench Rest Bullets For Sale
Qty/box Weight Calibre Ogive Base Meplat Style
100 112gr 0.308 7 cal flat hollow $58
300 112gr 0.308 7 cal flat hollow $170
450 112gr 0.308 7 cal flat hollow $250
65 115gr 0.308 7 cal boat-tail hollow $35
400 115gr 0.308 8 cal flat hollow $220
100 118gr 0.308 10 cal flat hollow $58
150 118gr 0.308 10 cal flat hollow $85
370 118gr 0.308 10 cal flat hollow $210
500 120gr 7mm 8 cal flat hollow $280
500 68gr 6mm Dbl 9 to 7 cal flat hollow $210
1000 68gr 6mm Dbl 9 to 7 cal flat hollow $420
500 68gr 6mm 8 cal boat-tail hollow $210
270 85gr 6mm 8 cal boat-tail hollow $110
500 52gr 0.224 7 cal boat-tail hollow $175
500 63gr 0.224 8 cal boat-tail hollow $175
Contact Gary Little Ph 0407 494423
garyrl49@gmail.com

Please confirm pricing for all items before ordering.

Now available, call for custom weights, bases and meplats:

  • 0.172 cal 8 cal tangent ogive;
  • 0.204 cal 6 cal tangent ogive;
  • 0.257 cal 9 to 7 double cal tangent ogive;
  • 0.264 cal 7 cal tangent ogive.
  • 0.312 cal 7 cal tangent ogive. (Suit 303 British,check your bore diameter)
  • 0.314 cal 3 cal elliptical ogive. (suit 303 British check your bore diameter).

7mm.com.au – Antipodean Industrial

Here is the link to an interview by Craig McGowan with me discussing Antipodean Industrial, G7<sub>L</sub> projectiles and bullet swaging.

Antipodean Industrial

G7LProjectile Design Characteristics

1. Bases

1.1 Boat-tail

1.1.1 Slightly rebated/stepped as a result of hand swaging type tooling in appearance;

1.1.2 More accurate than a standard conical boat-tail? Find out for yourself;

1.1.3 Creates the appropriate amount of drag to keep the centre of pressure behind the centre of gravity;
1.1.4 Maximises accuracy and velocity efficiency at >500y;
1.1.5 Angles used depend on the boat tail length but for long range (500y+) range from 10 to 7 degrees;
1.1.6 Critical to stability/accuracy during transonic and subsonic velocity levels;
1.1.6.1 Boat-tail and Mach speed combined, can contribute over 50% of total projectile drag!
1.2 Flat Base

1.2.1 Maximises accuracy at ranges less than 500y.

2. Shank/Bearing Surface

2.1 Sufficient length to ensure projectile alignment in barrel;

2.2 Tapers slightly from a maximum diameter at the Base to where it meets the Ogive;
2.3 Surprisingly the shank contributes little to the overall drag through the atmosphere of a projectile.

3. Ogive

3.1 Moderately aggressive 12S calibre minimum radius ogives with a tangent finish;

3.2 Provides good velocity efficiency with good tolerance for seating depth;

3.3 Provides a significant portion of the overall projectile drag.

4. Meplat

4.1 Designed to provide a consistent diameter finish with a moderately small open tip diameter, this should minimise the requirement for tipping/pointing the meplat.

4.2 Does provide a portion of the overall projectile drag. Most designs have an optimum meplat diameter of 15% of their projectile calibre at supersonic flight.

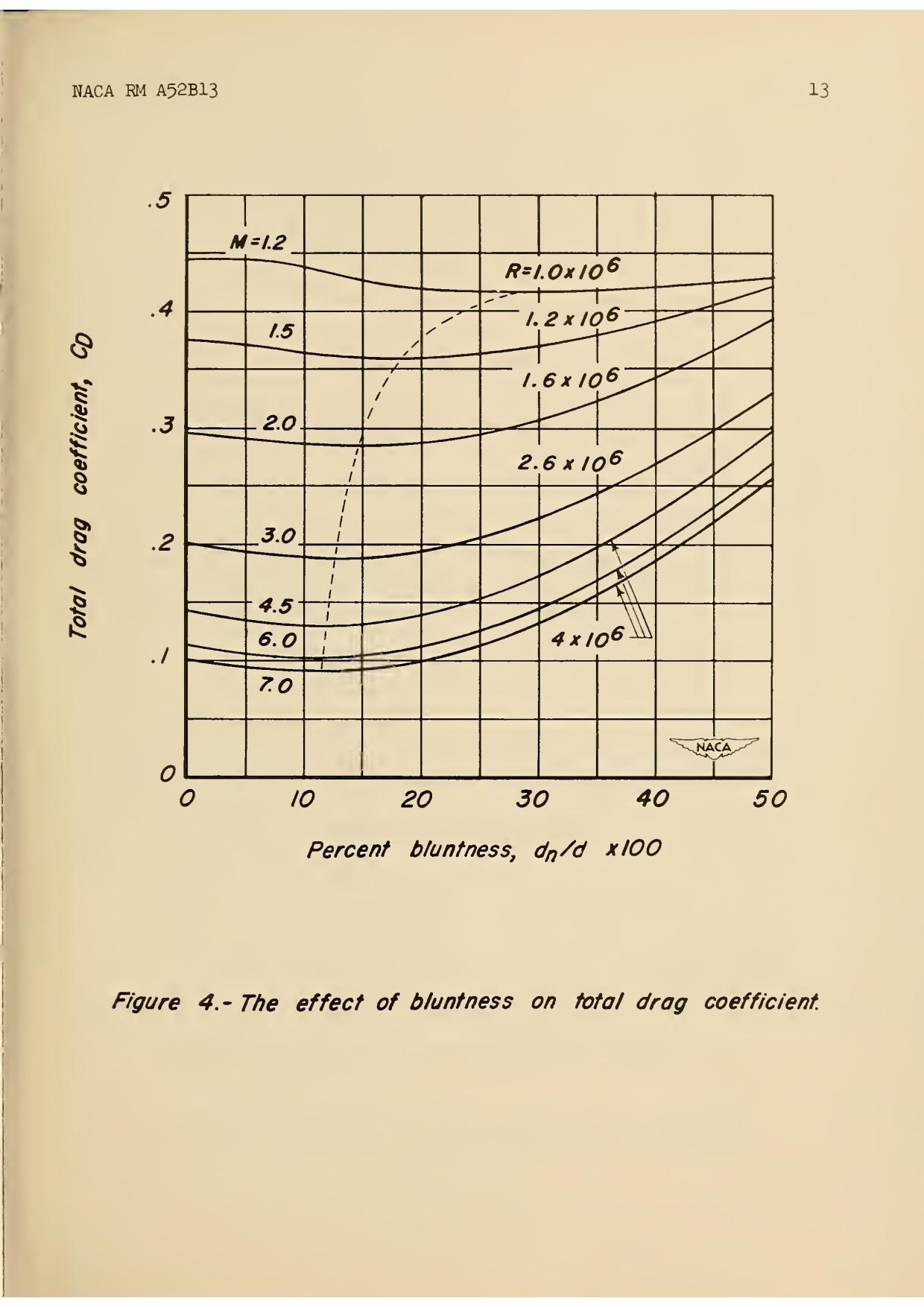

4.2.1 A meplat diameter of 20% provides the same drag as a meplat diameter of 10%, Figure 1 (Sommer 1952, 13__ia700704.us.arch...ectofbluntnes00ames;

4.2.2 An absolute pointed cone provides the most efficient meplat but has yet to be achieved with an open tip match (OTM) projectile design!

5. Jackets

5.1 Precision gilding metal target jackets 95% copper, 5% zinc.

6. Cores

6.1 99.9+% extruded lead.

G7L series projectiles

Calibres, Weights and Pack Sizes

Please confirm pricing at the time of order. Shipping not included, please confirm when ordering.

If you don’t see a particular weight listed in the calibres below, send an enquiry via email or the contact form.

Calibre Mass(gr) Est. Mach Averaged BCG7(1) Min Twist per 100 per 500 Code
224 80(2)  0.216 1:8” $50.00 $241.56 G7L-224-80
243 105 0.242 1:8” $70.00 $338.17 G7L-243-105
257 135   1:8.5” NA NA NA
264 130  0.258 1:8” $84.00 $405.79 G7L-264-130
264 140  0.278 1:8” $85.00 $410.63 G7L-264-140
284 168  0.319 1:10” $87.00 $420.31 G7L-284-168
“The Norm”
284 175   1:9” $88.00 $425.12 G7L-284-175
284 180  0.342 1:9” $88.00 $425.12 G7L-284-180
308 150   1:14” $61.00 $294.69 G7L-308-150
308 155(3)  0.239 1:13 $86.00 $415.47 G7L-308-155
308 168   1:13” $86.00 $415.47 G7L-308-168
308 175   1:13” $87.00 $420.31 G7L-308-175
308 185   1:12” $88.00 $425.12 G7L-308-185
308 190   1:11” $89.00 $429.94 G7L-308-190
Calibre Mass(gr) Est. BCG7(1) Min Twist per 50 per 500 Code
308 210  0.334 1:11” $46.00 $444.50 G7L-308-210



Notes:

(1) Based on the “G7 form factor prediction” as described by Litz (2011, 573)

(2) Based on ICFRA Tech Rules & Regs for Fullbore TR 2008 Ed. 3 – Jul 2008 rule T2.19.2.1.

(3) Based on ICFRA Tech Rules & Regs for Fullbore TR 2008 Ed. 3 – Jul 2008 rule T2.19.2.2.
